| Bolt lengths | 39.5 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 28.4 |
| Calculated Weight (kg) | 0 |
| Clevis pins | 14 mm |
| Connection port / fitting | M22×1.5 / M22×1.5 |
| Connection specification | JED-388-0 |
| Distance between bolts | 120.6 mm |
| GTIN | 04057877001971 |
| Max. operating pressure | 10.0/8.5 bar |
| Output force service brake | 9.0 kN |
| Output force spring brake | 6.8-11 kN |
| Port: working pressure [p emax.] | 11: 10 bar (13 bar), 12: 8.5 bar (11 bar) |
| Port thread 11 | M22 x 1.5 JED-388-0 |
| Product category | Device |
| ProVia warranty | 1 year |
| Push-rod length | 290 mm |
| Push-rod length + yoke (middle of yoke) | 290 mm |
| Push-rod length without yoke | 257.45 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 5.5 bar |
| Stroke | 57/57 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 265.0 mm |
| Type | 24/24 |
| Type of operation | Cam |
| UPC | 193134005321 |
| Version | Without boot |
| Weight (kg) | 10.41 |
| Weight (lb) | 22.95 |
| Yoke | Screwed |

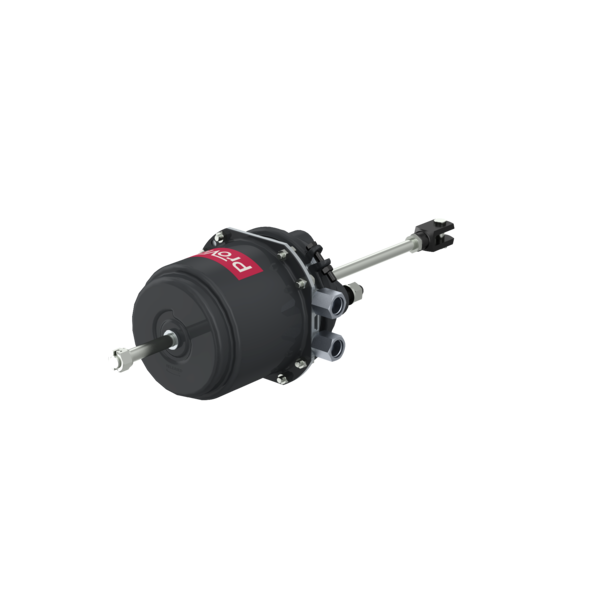

Spring Brake Actuator CAM 24/24-57mm
Material Number: PRO4210020| Sizes (MM x MM x MM): | 650 x 230 x 190 |
| Weight | 10.41 |
| GTIN | 04057877001971 |
